Thông tin sản phẩm

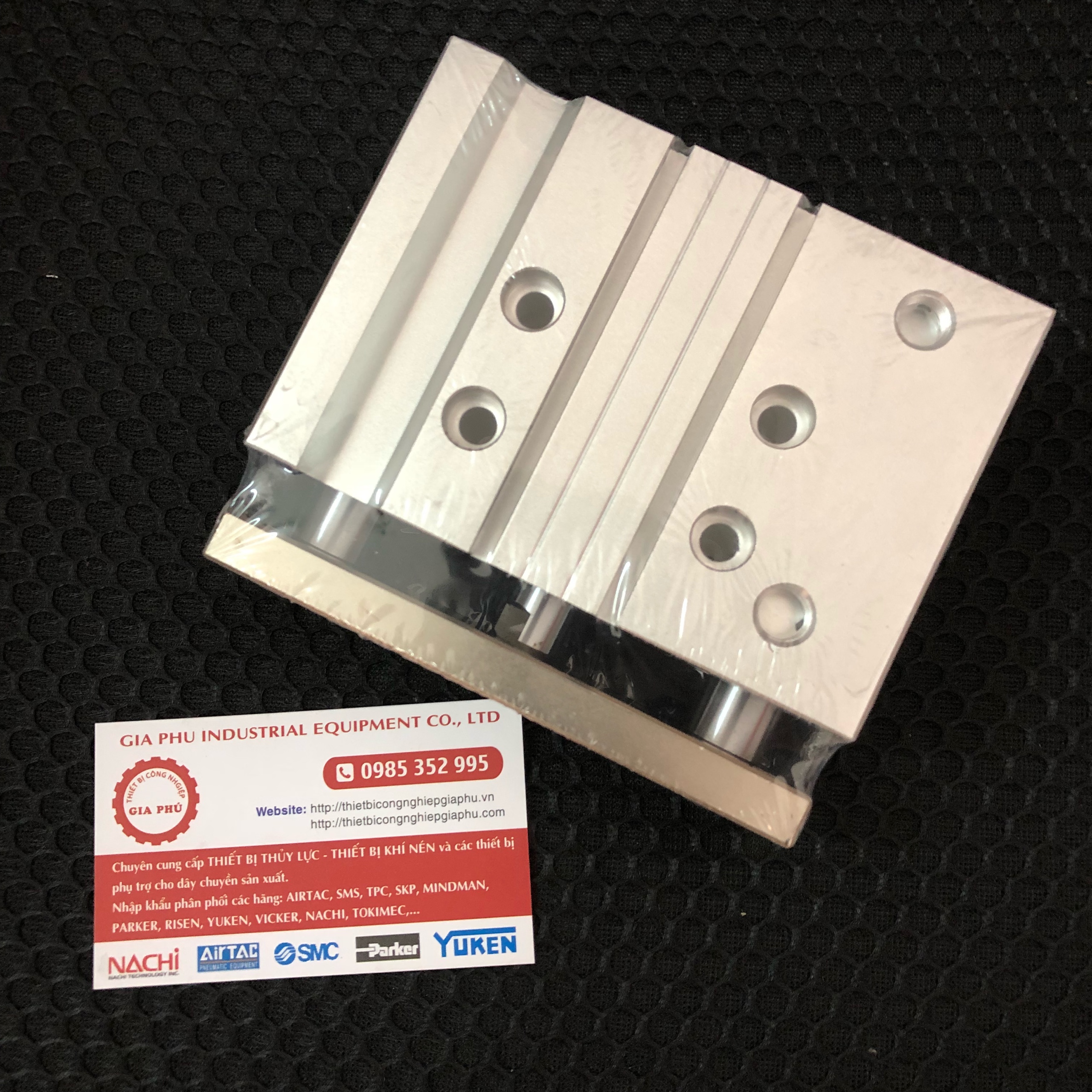

Mô tả sản phẩm xylanh ba trục Airtac model: TCL series

xylanh ba trục Airtac TCL10-20 , xylanh khí nén TCL12-15 , TCL 20-50 , TCL 25-75 , xylanh khí nén airacTCL 32-100 , TCL 40-50 , TCL 50-50 , TCL 63-50 , TCL 80-75 , TCL 100-75 , TCL 10-20 , TCL 12-40, TCL 20-30, TCL 25-50, TCL 32-80, TCL 40-40

1.  JIS standard is implemented.
2.  Two guides of special bearing steel and linear bearing or bronze bearing guide are used to prevent rotating. They can bear high torque and radial load.
   ★Note: Steel ball linear bearing: It is suitable for elevation action of cylinder or the situation requiring high precision and high bearing ability, especially for the situation requiring low fraction action process.
    Bronze sliding bearing: it is suitable for the action that has radial load resistance. Compared with normal cylinder of same use, the horizontal impact resistance is doubled and it has stronger torsion rigidity.
3. Drive unit and guide unit are in the same barrel that no additional accessories are needed with minimal space required. The air intake is optional and it is convenient to install.
4. The bottom, back side and fixing plate of main body respectively has two exact orientation orifices (See ΦPA orifice and the orifice in XX point), which can provide orientation installation with high precision for the special situation.
5.  Options of switch mounting with provision 4 mounting slots.
6. Special design of main body provides multi-mount

Thông số sản phẩm xylanh dẫn hướng  Airtac model: TCL series:

Hướng dẫn chọn mã sản phẩm xylanh khí nén Airtac model: TCL & TCL series

Sản phẩm doanh nghiệp: CÔNG TY TNHH THIẾT BỊ CÔNG NGHIỆP GIA PHÚ
